A Glolab
KIT consists of a PC board and parts that must be mounted on the
board and soldered in place by a user. A manual with assembly instructions,
schematic diagram and physical layout diagram is included with a kit. Other
user supplied parts may be required in order for a kit to perform a specific
function after it is assembled.
A Glolab
MODULE is a wired and tested device that is intended for use as a
component of a user designed project or assembly. Other user supplied
components are required to make a module perform a desired function. Glolab
kits and modules
are not RoHS compliant.
Click on a kit
or module for a description.
Schematic diagrams and parts lists can be downloaded in PDF.
FOUR CHANNEL TRANSMITTER AND RECEIVER KITS
KTGP418
KRGP418
Basic four channel transmitter and
receiver kits for remote control applications. Kits include the minimum
number of parts required to build a wireless system. Kits do not include
battery connector or power source.
|
 |
 |
|
KTGP418 TRANSMITTER
KIT $24.95 |
KRGP418 RECEIVER KIT
$32.95 |
25.4mm X 45.72mm |
27.97mm X 45.72mm |
|
1.0" x 1.8" |
1.1" x 1.8" |
KT4A
KR4A KR4B
Send data bits one at a time or up to four at the same time.
Receiver outputs can be either latched or momentary. Latched outputs can be reset from the
transmitter or receiver. LEDs indicate when data is being received. KR4A has open
collector outputs, KR4B has relay outputs with SPST contacts rated 10 amperes @ 120VAC or
30 VDC.
 |
 |
 |
KT4A TRANSMITTER KIT
$36.14 |
KR4A RECEIVER KIT
$51.86 |
KR4B RECEIVER KIT
$67.50 |
40.6mm X 45.7mm
|
45.7mm X 71.1mm |
66.04mm X 76.2mm |
1.6" X
1.8" |
1.8" X
2.8" |
2.6" X
3.0" |
418 MHz RF MODULES
Make your next project wireless with these easy to use miniature 418
MHz RF modules
TRANSMIT MODULE $17.50
RECEIVE MODULE
$24.90
0.65" HIGH X 0.73" WIDE
0.9" HIGH X 1.1" WIDE
ENCODER/DECODER
4 and 16 data channels to control:
- Machinery
- Special effects
- Industrial process
- Remote security cameras
- Robots
ANTENNAS
For 418 MHz wireless modules
MOTION DETECTOR PARTS
Pyroelectric
Infrared Sensor
Infrared
Fresnel lens
***** NEW *****
DP-001
DIGITAL PYROELECTRIC INFRARED MOTION DETECTOR MODULE
|
 |
 |
 |
|
MINIATURE |

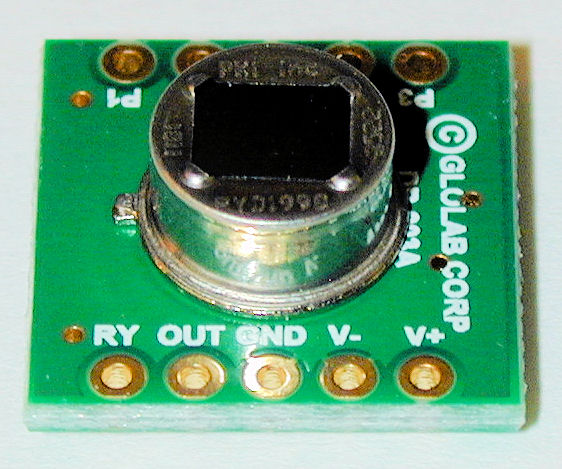

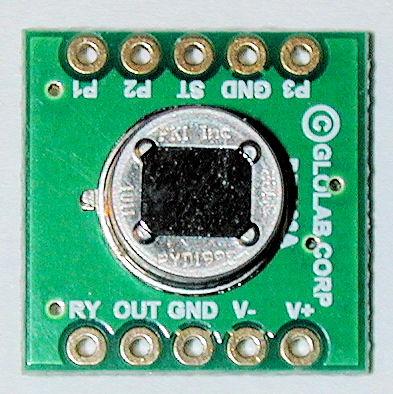

FRONT VIEW |

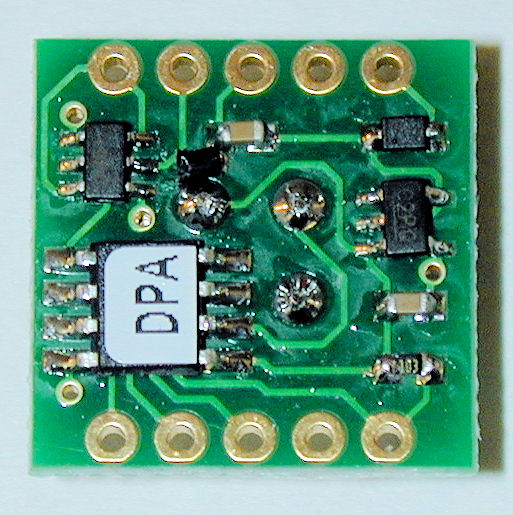

BACK VIEW |
Miniature micropower motion detector module uses a
digital pyroelectric infrared sensor to detect a moving human or animal,
operates on 4 to 15 volts and can directly drive a LED or relay. This module
can be used with a FL40 or FL65 Fresnel lens or other types of lens.
***** NEW *****
DP-005
DIGITAL
DIRECTION SENSING PYROELECTRIC INFRARED MOTION DETECTOR
|
 |
The DP-005 is
completely assembled with enclosure and lens. Only an external battery or
other power source is required. Photo shows the DP-005 size
compared to a 9V battery (not included). |
|
|
|
Direction sensing motion detector uses
dual digital pyroelectric infrared sensors to detect the direction of
movement of a human or animal. It has two outputs; one for each direction.
The DP-005
operates on 4.5 to 15 volts and can directly drive LEDs or relays.
GLMDA INFRARED MOTION DETECTOR KIT
|
 |
 |
|
TOP VIEW OF
ASSEMBLED KIT |
BOTTOM VIEW OF
ASSEMBLED KIT |
|
60.96mm X 43.18mm X
22.86mm |
|
2.4" X 1.7" X 0.9" |
Kit contains printed circuit board and all board
mounted parts to build a general purpose motion detector.
This is a kit. Parts must be assembled and soldered.
GLMDA INFRARED MOTION DETECTOR
MODULE
This GLMDA MODULE is the same as
the GLMDA KIT except all parts are already mounted on the PC board and
soldered in place. Just connect a power source and it's ready to detect
motion.
 |
Blank printed circuit board
without components.
GLMDPCB board. This is the PC board
that is used in the GLMDA motion detector kit. |
KMDT
WIRELESS MOTION DETECTOR TRANSMITTER KIT
|
 |
|
 |
|
ASSEMBLED KMDT WIRELESS MOTION DETECTOR TRANSMITTER BOARD |
|
BOARD INSTALLED IN
ENCLOSURE AND FRESNEL LENS TAPED INSIDE COVER |
The KMDT is a kit that includes a
plastic enclosure, Fresnel lens, PC board and all board mounted parts. This
is a kit. Parts must be assembled and soldered. A 9
volt battery is not included.
When motion is detected by the KMDT,
it transmits a wireless signal at 418 MHz. You will also need a
KR4A or a KR4B
wireless receiver kit to receive the signal. The wireless receiver is
not included in the KMDT wireless motion detector transmitter kit and must
be purchased separately.
GCT1
INFRARED MOTION DETECTOR CAMERA TRIGGER MODULE
 |
 |
|
TOP VIEW |
BOTTOM VIEW |
|
50.8mm X 50.8mm X 17.78mm |
|
2.0" X 2.0" X 0.7" |
Motion detector camera trigger module uses a
pyroelectric infrared sensor to detect a moving human or animal. This module
is designed to be used with a FL65 Fresnel lens but can also be used with
other types of lens.
Go to ORDER PAGE for kit and parts pricing and shipping
cost
 Download a free
copy of Acrobat Reader so you can view and print our
PDF documents that
contain data and schematics
